What Is the FinStand?

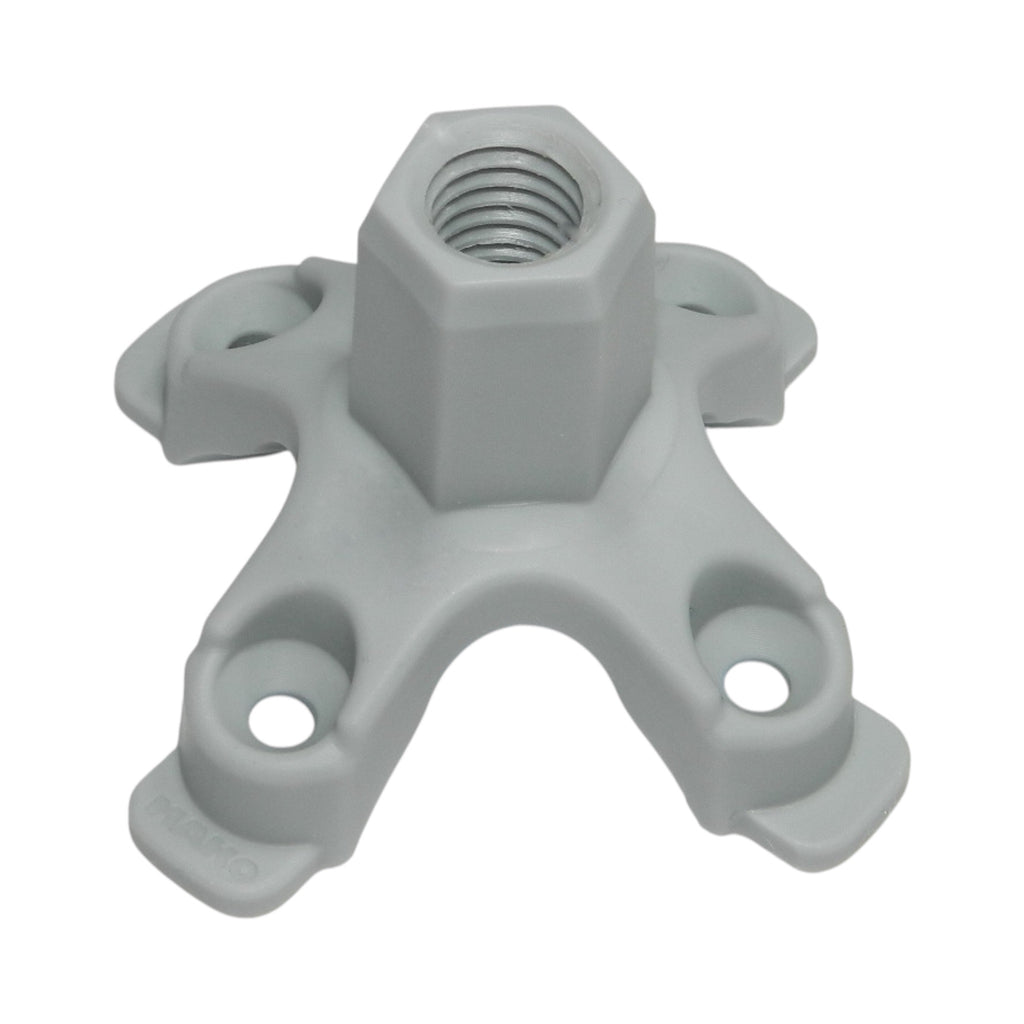

The Adjustable FinStand® is a stay-in-place concrete form support designed to hold FinCap® and all JAWS® screed chairs when setting grade for elevated slabs on wood or metal decks.
It accepts 1/2"-13 threaded rod and provides up to 1-3/4" (45 mm) of vertical adjustment for precise slab elevation control.
Designed For
- Slab-on-metal deck construction
- Slab-on-wood deck construction
- Bridge decks and infrastructure projects
- Power plant and waterway concrete pours
- Super flat floor construction (FF/FL compliance)
- Structural anchor bolt and threaded rod positioning
Complies with ACI 302.1R-04, ACI 117 and ASTM E1155. Iowa DOT approved.
Key Specifications
-
Product Number: 08244STND
-
Overall Height: 1.75"
-
Base Width: 2.25"
-
Threaded Opening: 0.75"
-
Accepts: 1/2"-13 all-thread rod
-
Vertical Adjustment: 1.75" using nut and washer
-
Load Capacity: Up to 800 lbs (nylon rod) / 1,000 lbs (steel rod)
-
Material: Impact-resistant medical grade polypropylene
-
Coverage: 100 FinStands per bag (approx. 3,000 sq ft / 278 m²)
-
Installation: Secure to wood deck with nails or to metal deck with #8 or #10 tek screws
-
Compatibility: FinCap®, JAWS Large, JAWS Small, JAWS RailFin
-
Country of Origin: Made in USA
Patented: 8,096,182 | 8,544,182 | Additional patents pending.
How It Works
- Secure the FinStand to wood deck using nails or to metal deck using tek screws.
- Insert 1/2"-13 threaded rod (nylon or steel).
- Adjust height using nut and washer (up to 1.75" vertical adjustment).
- Attach FinCap or JAWS screed chair.
- Set screed rail and pour concrete.
The FinStand remains in place after the pour as a stay-in-place form.
Spacing Guidelines
Place a FinStand approximately every 3–4 feet depending on soil conditions, screed weight, placement method, and tolerance requirements.
Common Applications
- Elevated slabs
- Slab-on-grade with vapor barriers
- Roads and bridge decks
- Finish grading
- Irregular or thick slabs
- Anchor bolt positioning
- Structural threaded rod support
Frequently Asked Questions
What size threaded rod works with the FinStand?
The FinStand accepts 1/2"-13 threaded rod. Nylon rod can be cut on site. For slabs thicker than 8", steel threaded rod is recommended.
Can FinStand be left in the slab?
Yes. The FinStand is a stay-in-place form made of medical grade polypropylene and will not corrode.
How much weight will the FinCap + FinStand support?
Up to 800 lbs using nylon all-thread and up to 1,000 lbs using steel all-thread.
Can it be used with vapor barriers?
Yes. The FinStand and Base Plate 4.5 were designed for use with vapor barriers and may be integrated in accordance with ASTM E1643-09 and ACI 302.2R-06 guidelines.
What screeds can be used with the MAKO system?
Roller, hand, vibrating, truss, laser, or power screeds can all be used with MAKO Screed Support Systems.
