Made in the USA • Non-conductive • Non-corrosive • Jobsite-Proven

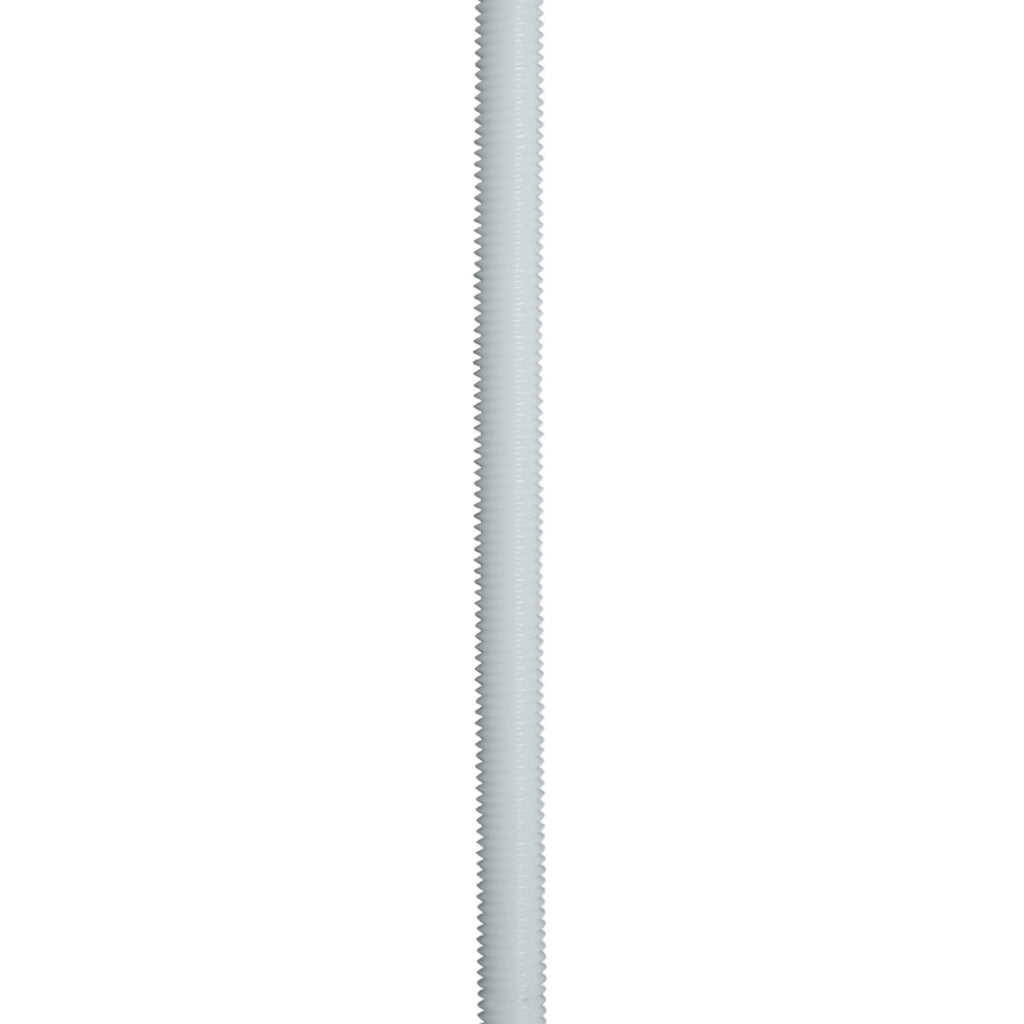

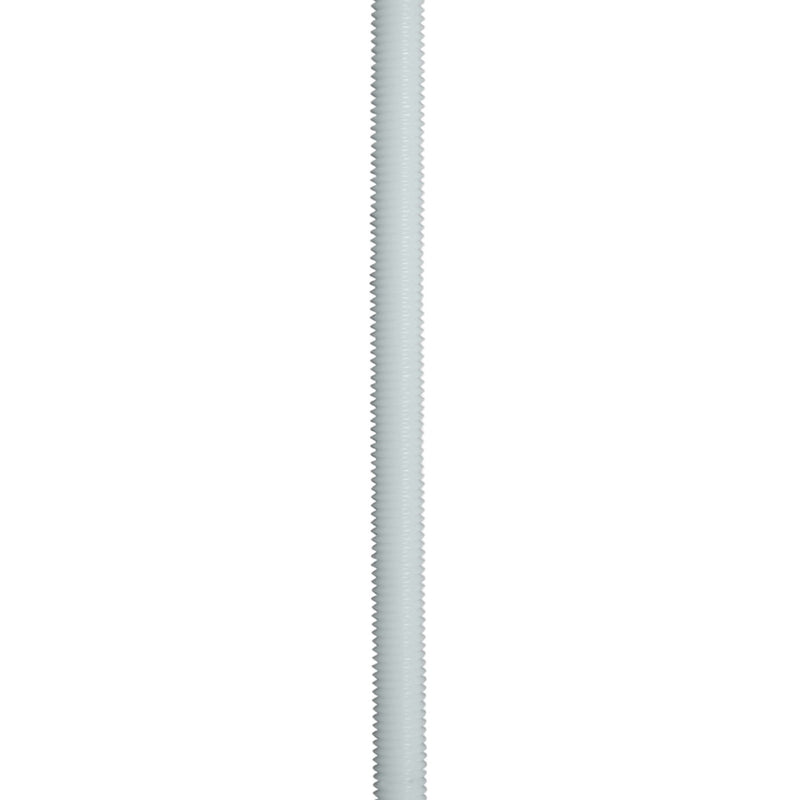

What Is the Nylon All-Thread Rod?
MAKO Nylon All-Thread is a heavy-duty 1/2″-13 threaded rod designed for use with the MAKO FinStand® system (and compatible with FinCap® and JAWS® when used with a flat washer and hex nut) for fine-tune height adjustments.
Each package includes twenty 18″ pieces that can be easily cut to length on the job site to match slab depth and screed setup requirements.
Designed For
- Use with FinStand® for adjustable screed chair support setup
- Slab-on-grade and elevated slab applications
- Precast and at-grade applications
- Projects requiring non-conductive, non-corrosive materials
- Bridge decks, waterways, and power plant concrete projects
Key Specifications
-
Product Number: 08249AT18N
-
Thread Size: 1/2″ x 13
-
Material: Heavy-duty nylon (color may vary)
-
Package Contents: 20 pieces, each 18″ long
-
Cut-to-Length: Easily cut on the job site (a PVC pipe cutter works well)
-
Typical Coverage: Enough all-thread to complete 100 supports for a 6″ slab (when cut to length)
-
Recommended Use Range: Commonly cut to size for ~4″ to 7″ thick slabs (based on job requirements)
-
Slabs Over 8″: Recommend using metal all-thread for slabs greater than 8″
-
Non-conductive / Non-corrosive: Will not corrode in extreme environments
-
Country of Origin: Made in USA
How It Works
- Determine slab depth and required rod length for your screed setup.
- Cut nylon all-thread to the needed length on site (PVC pipe cutter recommended).
- Install rod with FinStand® and use a flat washer and nylon hex nut for fine-tune height adjustment.
- Set your FinCap® or JAWS® screed chair and align to string line or laser.
- Proceed with screed rail placement and concrete pour.
Why Contractors Choose Nylon All-Thread
- Fast cut-to-length flexibility for different slab depths
- Non-conductive and non-corrosive for harsh environments
- Durable nylon construction for jobsite use
- Pairs with MAKO hardware for easy fine-tune adjustment
Frequently Asked Questions
What MAKO products is this all-thread used with?
This nylon all-thread is used with FinStand® and can also be used with FinCap® or JAWS® when paired with a flat washer and nylon hex nut for fine-tune height adjustments.
How many pieces come in a package?
Each package includes twenty 18″ pieces.
Can I cut it on the job site?
Yes. It can be easily cut to length on site. A PVC pipe cutter works well.
How much area does one package cover?
A typical package provides enough all-thread to complete approximately 100 supports for a 6″ slab (when cut to length). Coverage varies with slab depth and required cut length.
When should I use steel all-thread instead of nylon?
For slabs thicker than 8″, metal all-thread is recommended.
Related Hardware (Recommended)
-
Nylon Hex Nut (1/2″-13): 08247NUTN
-
Nylon Flat Washer: 08248WSHN (0.5″ x 1.25″ x 0.125″)
Downloads
Nuts / Washer / All-Thread Product Data Sheet
